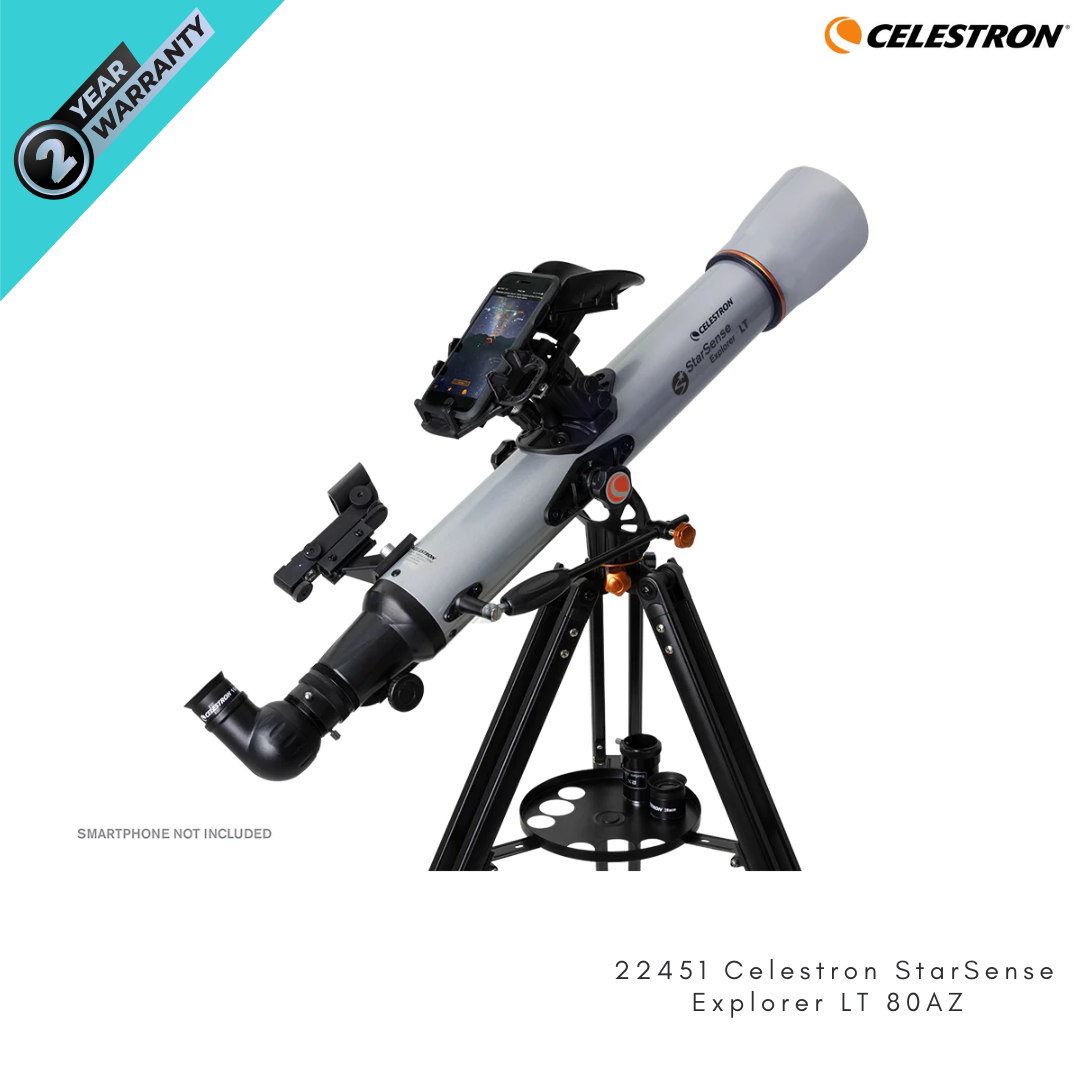

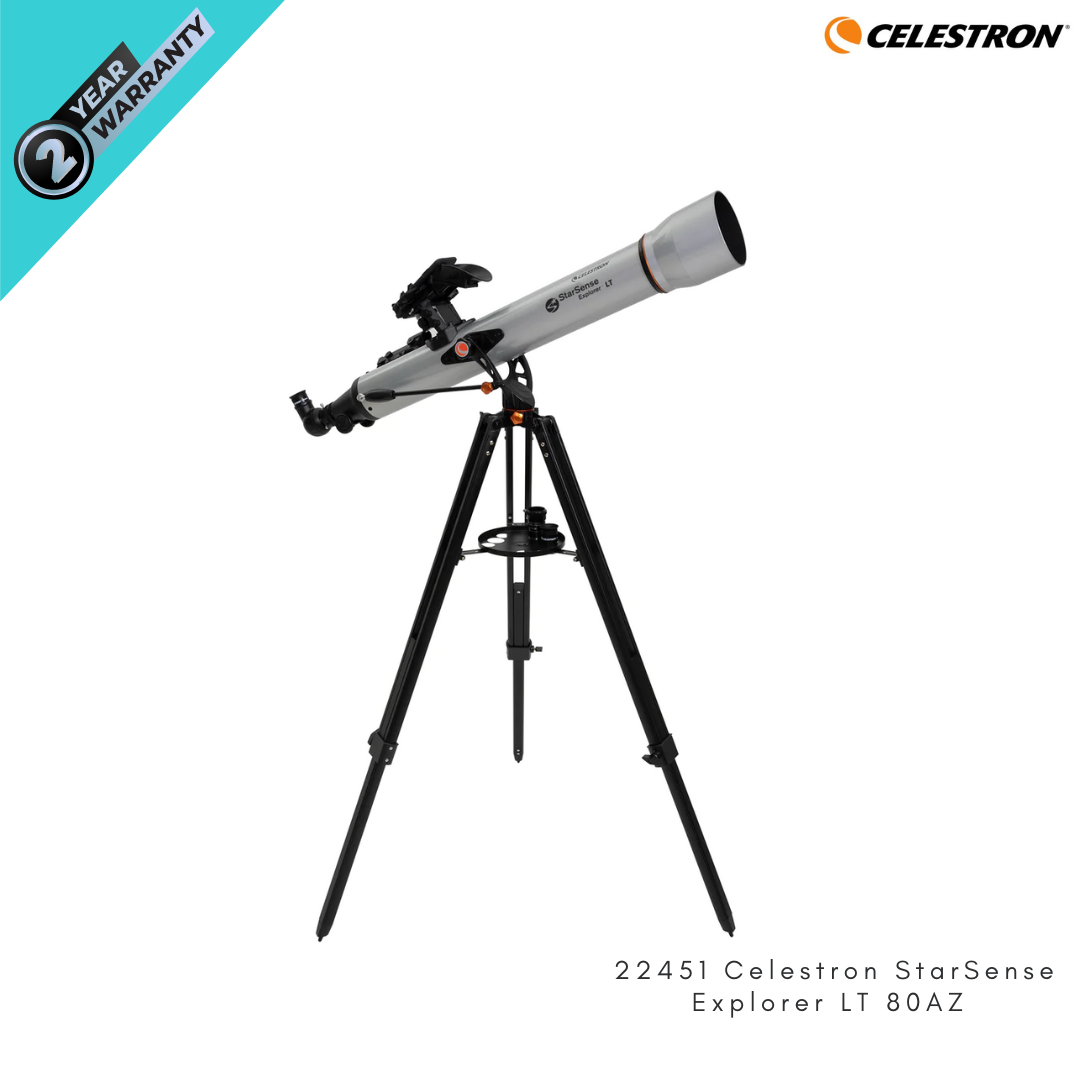

OPTICAL TUBE INFO: | |
---|---|
Optical Design: | Refractor |
Aperture: | 80mm (3.1″) |
Focal Length: | 900mm (35.43″) |
Focal Ratio: | f/11 |
Focal Length of Eyepiece 1: | 25mm (0.98″) |
Magnification of Eyepiece 1: | 36x |
Focal Length of Eyepiece 2: | 10mm (0.39″) |
Magnification of Eyepiece 2: | 90x |
Barlow Lens: | 2x (1.25″) |
Finderscope: | StarPointer™ red dot finderscope |
Star Diagonal: | Erect image 90° (1.25″) |
Optical Tube: | Aluminum |
Highest Useful Magnification: | 189x |
Lowest Useful Magnification: | 11x |
Limiting Stellar Magnitude: | 12 |
Resolution (Rayleigh): | 1.74 arc seconds |
Resolution (Dawes): | 1.45 arc seconds |
Light Gathering Power (Compared to human eye): | 131x |
Optical Coatings: | Fully Coated glass optics |
Optical Tube Length: | 965mm (38″) |
Optical Tube Diameter: | 90mm (3.54″) |
Optical Tube Weight: | 5.4 lbs (2.45 kg) |
Dovetail: | None |
MOUNT INFO: | |
Mount Type: | Manual Alt-Azimuth |
Height adjustment range (includes mount and tripod): | Aluminum, 1320.8mm (52″) max height |
Tripod Leg Diameter: | 31.75mm (1.25″) steel |

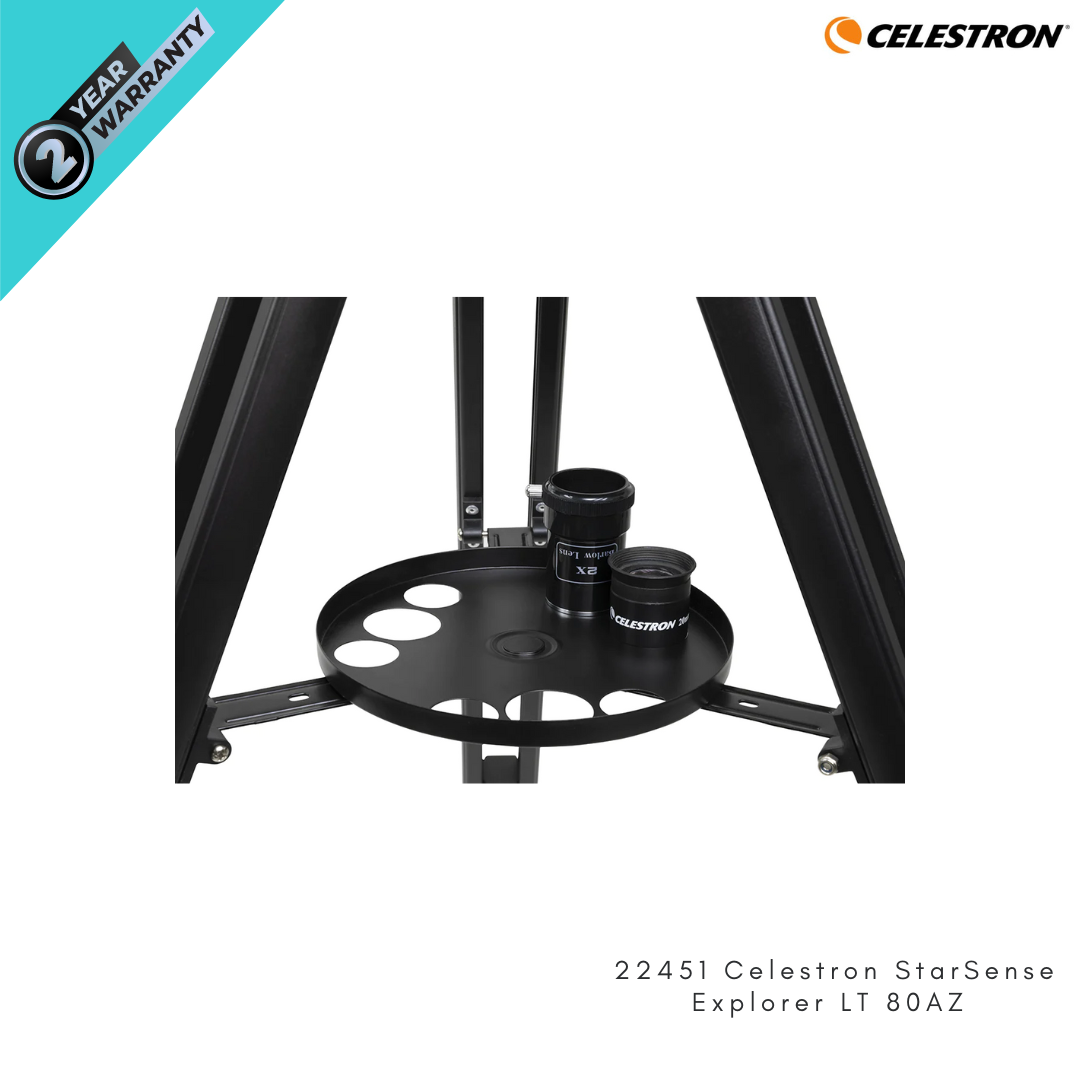

Accessory Tray: | Yes |
Tripod Weight: | 3.8 lbs (1.72 kg) |
Slew Speeds: | Manual |
GPS: | Uses phone’s GPS |
Dovetail Compatibility: | None |
Power Requirements: | None (Recommend PowerTank Glow to keep phone charged while using App) |
Alignment Procedures: | Use StarSense Explorer App |
Software: | StarSense Explorer App, SkyPortal App, and Celestron Starry Night Basic Edition Software |
Total Kit Weight: | 9.2 lbs (4.17 kg) |
Included Items: | Optical tube Mount and tripod (preassembled) 25mm and 10mm eyepieces Erect image diagonal 2x Barlow Lens StarPointer™ red dot finderscope Accessory tray StarSense Explorer phone dock |
Solar Warning |
|
